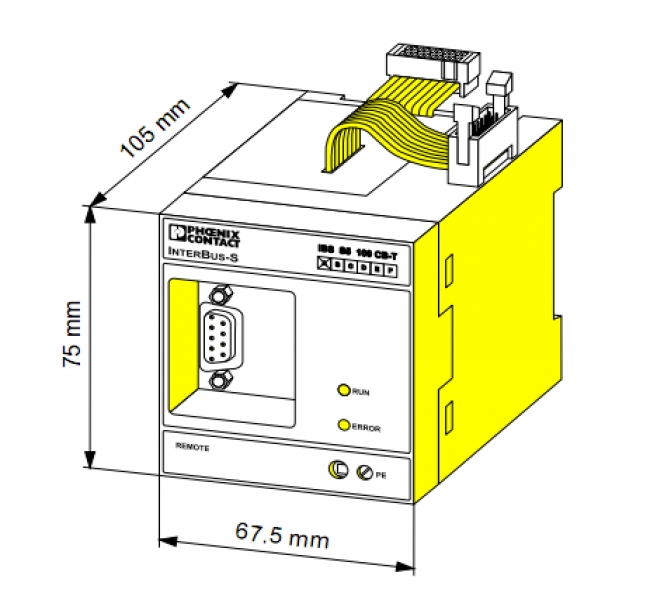

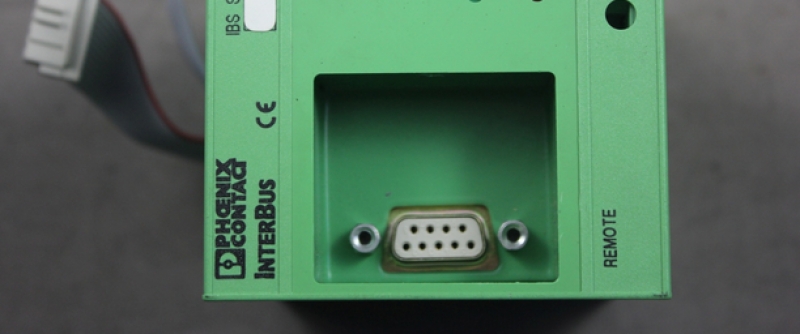

IBS S5 100 CB-T PHOENIX CONTACT No.2753698
Siemens SIMATIC S5 - 90/95 U and 100 U PLC terminal board
Product Description: The compact SIMATICS5 PLCs can be coupled through the IBS S5 100 CB-T controller board to
the InterBus-S sensor/actuator bus. The controller board, which can be easily taken into
operation, exchanges the data between the compact PLC /span>
the bus system.
Features: - Host controller board for the
InterBus-S sensor/actuator
bus
- 2-wire remote bus port
- Connection to the SIMATIC
S5 95U/100U
- Connection of up to 128
InterBus-S devices
(incl. 64 remote bus devices)
- Up to 480 inputs and 496
outputs can be connected to
InterBus-S
- Automatic configuration and
addressing
- System control and
diagnostics via the I/Os of the
PLC
- Optical diagnostics by way of
LEDs on the front plate
- Rail-mountable
